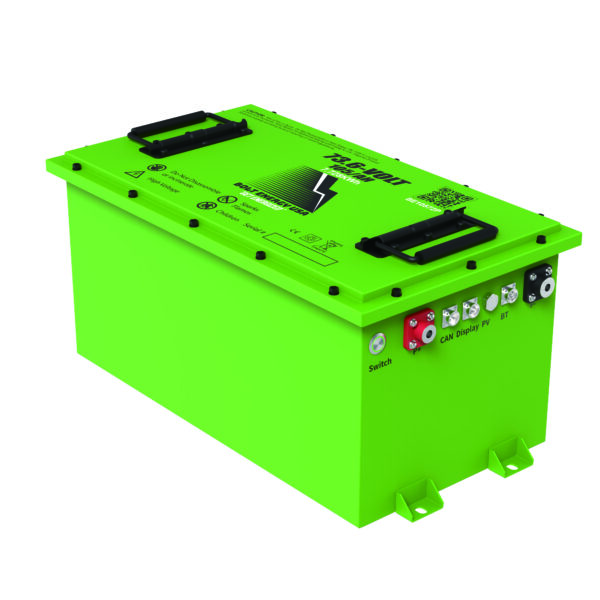

The Bolt Energy USA 72-Volt / 105-AH Professional Kit “Power” is built for high-performance golf carts and custom builds that demand serious speed, torque, and range. This complete 72V lithium conversion kit replaces bulky lead-acid packs with a powerful 72V-105Ah Bolt Energy battery that delivers stronger acceleration, more consistent voltage, and dramatically reduced maintenance.

At the core of the kit is the 72V-105Ah lithium battery paired with an integrated Bluetooth receiver and Smart SOC (state of charge) meter, so you can monitor battery health and remaining capacity in real time. Check your status from the dash or compatible device and know exactly how much 72-volt power you have left for the track, course, or neighborhood.

To make installation straightforward, the kit includes an owner’s manual with simple installation instructions, 6 ring terminal connectors (3/8″), ten 10″ tie straps, mounting brackets with nuts and bolts, and Bolt Energy USA stickers for a clean, professional finish. A waterproof high-speed charger is included to quickly and safely recharge your 72V lithium system, while the AC hardwire port and DECO cover plate (universal or Club Car) provide a neat, OEM-style charging interface.

For powering accessories, you get a 30-amp reducer to safely run 12-volt lights, stereos, and add-ons, plus two 40″ 2AWG premium installation cables to ensure low-resistance, high-current connections. The kit also includes a 48V 400A solenoid (per manufacturer package list), a lead battery removal strap to help pull out old batteries, and a 15 ft 12 AWG green lighted extension cord for convenient, visible plug-in charging.

If you’re upgrading to a 72-volt power system for more speed, torque, and run time, the 72-Volt / 105-AH Professional Kit “Power” gives you everything needed to convert your cart to modern, efficient lithium performance.

Detailed Specs

MECHANICAL SPECIFICATIONS

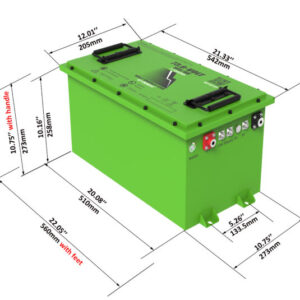

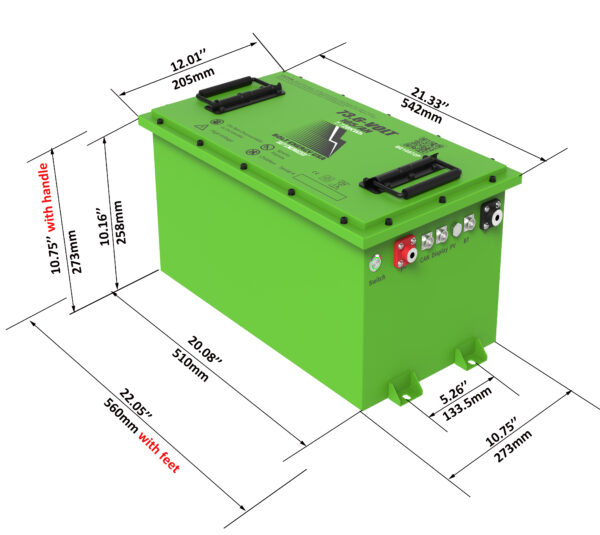

  • Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
  • Weight: 137.26lbs (62.26kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P23S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 57.5V
  • Recommended Low Voltage Disconnect: 69.0V
  • BMS Reconnect Voltage: 60.0V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 73.6V
  • Working Voltage: 62 – 83.95V
  • Recommended Voltage: 69V – 81.93V
  • Nominal Capacity: 105Ah
  • Energy: 7,728Wh
  • Capacity @ 25A: 420 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 84V
  • Reconnect Voltage: <84V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Data Sheet

Download now – Click here

What's included?

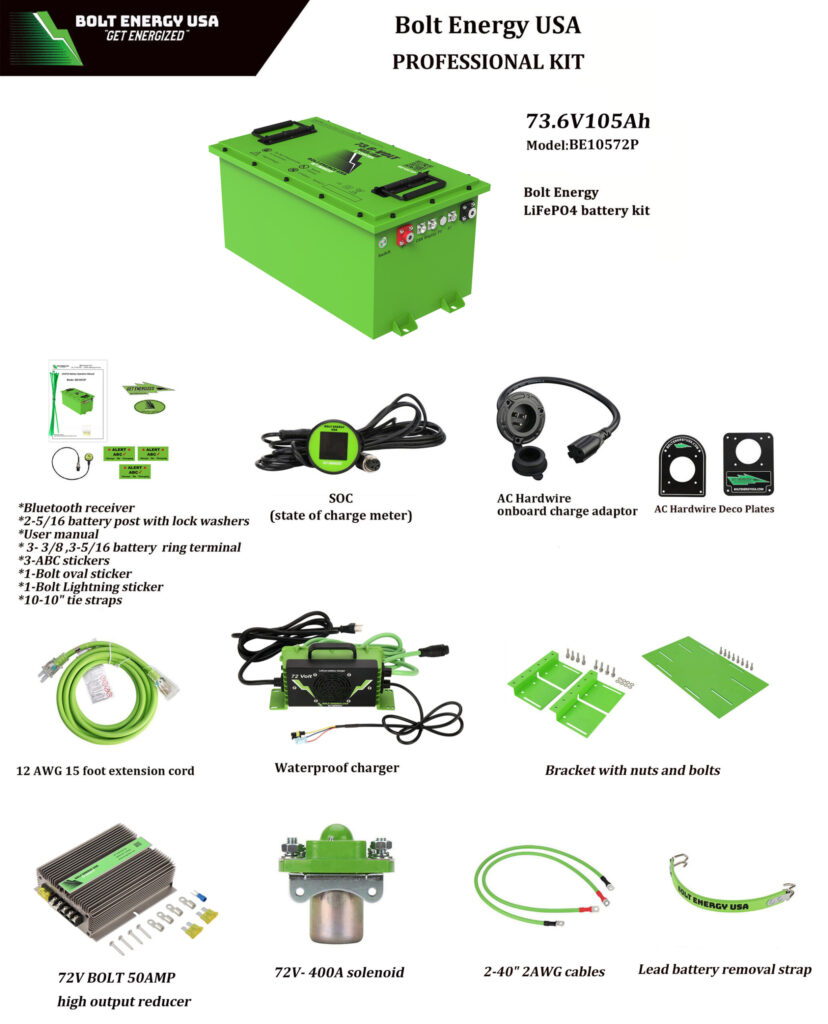

Bolt Energy USA Battery 72-Volt / 105-AH Professional Kit “Power” - What's included
