The Bolt Energy USA 72-Volt / 105-AH Standard Kit “Power” is built for high-performance golf carts that need serious voltage and reliable range. Centered around a powerful 72V-105AH Bolt Energy lithium battery, this kit delivers harder acceleration, stronger torque, and longer run time than traditional 48V lead-acid setups—ideal for lifted carts, street builds, and performance applications.

With the integrated Bluetooth receiver, you can monitor battery health, voltage, and performance from your smartphone. The Smart SOC (state of charge) meter provides an accurate, real-time view of remaining battery life, so you always know how much range you have before your next ride.

Installation is made easy with an owner’s manual featuring SIMPLE installation instructions, making this 72V kit a solid option for both DIY installers and professional golf cart shops. For a clean, secure install, the Power Standard Kit includes six 3/8″ battery ring terminal connectors, ten 10″ tie straps, plus mounting brackets with nuts and bolts to keep the battery firmly in place. Bolt Energy USA stickers add a finished, professional touch to the install.

Charging is handled by a waterproof high-speed charger, designed to deliver consistent performance in demanding environments. The kit also includes an AC hardwire port and a DECO cover plate (universal or Club Car), giving your charge port a clean, factory-style appearance. A 15 ft 12 AWG green lighted extension cord makes it easy to connect to power and visually confirms when the charger is live.

If you’re stepping up to 72 volts for more speed and power, the 72-Volt / 105-AH Standard Kit “Power” provides a complete, thoughtfully packaged 72V lithium solution for performance golf carts that need dependable, high-output energy every day.

Detailed Specs

MECHANICAL SPECIFICATIONS

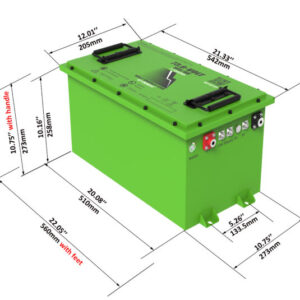

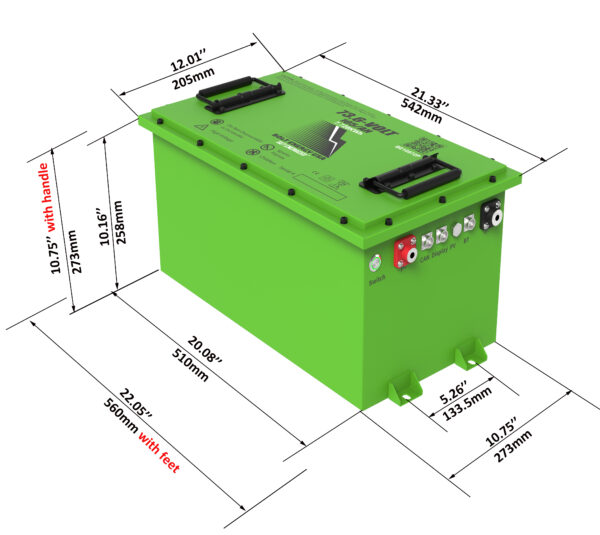

  • Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
  • Weight: 137.26lbs (62.26kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P23S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Stardard
  • Cell Type – Chemistry: Prismatic- LiFePO4

DISCHARGE SPECIFICATIONS

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 57.5V
  • Recommended Low Voltage Disconnect: 69.0V
  • BMS Reconnect Voltage: 60.0V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

ELECTRICAL SPECIFICATION

  • Nominal Voltage: 73.6V
  • Working Voltage: 62 – 83.95V
  • Recommended Voltage: 69V – 81.93V
  • Nominal Capacity: 105Ah
  • Energy: 7,728Wh
  • Capacity @ 25A: 420 min
  • Efficiency: 0.99
  • Self Discharge: <3% per Month

CHARGE SPECIFICATIONS

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 84V
  • Reconnect Voltage: <84V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

COMMUNICATION

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Data Sheet

Download now – Click here

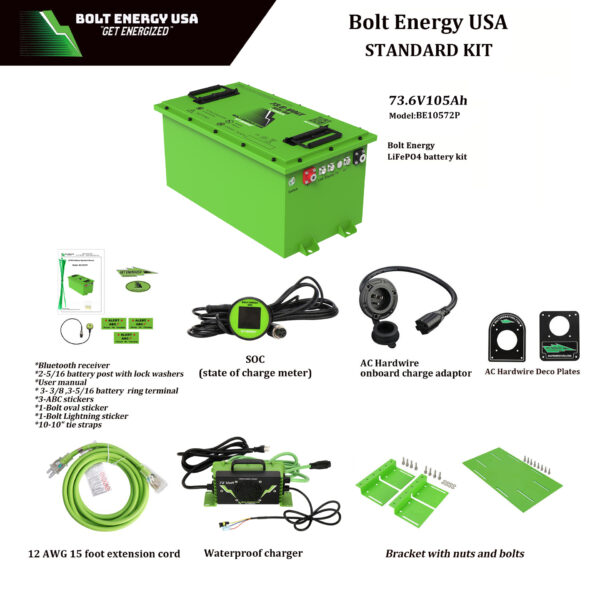

What's included?

Bolt Energy USA Battery 72-Volt / 105-AH Standard Kit “Power” - What's included
